TSOC_Teensy3x : Teensy 3.2 thingSoC Adapter

The TSOC_Teensy3x is an adapter board for the excellent Teensy Development Board from PJRC. The TSOC_Teensy3x allows you to connect thingSoC, Mikrobus, and/or Grove System Modules all at the same time, either standalone, or with any other thingSoC Processor or Radio module. This gives you maximum flexiblity for sensor and actuator selection and reuse.

The TSOC_Teensy3x accepts any thingSoC or Mikrobus module, including a number different IoT compatible wireless Radio modules, and a variety of input and analog sensors, such as Temperature, Wind, Pressure, Air Quality, and Gases. The TSOC_Teensy3x also accepts a variety of output modules, such as relays for controlling lights, pumps, or motors, as well as stepper motor and other outputs.

TSOC_Teensy3x - Embedded Module :

The TSOC_Teensy3x connects any thingSoC (or Mikrobus) module to the Arduino IDE, including RS-232, RS-485, GSM, GPS, BLTE, motor control, analog sensors, and others.

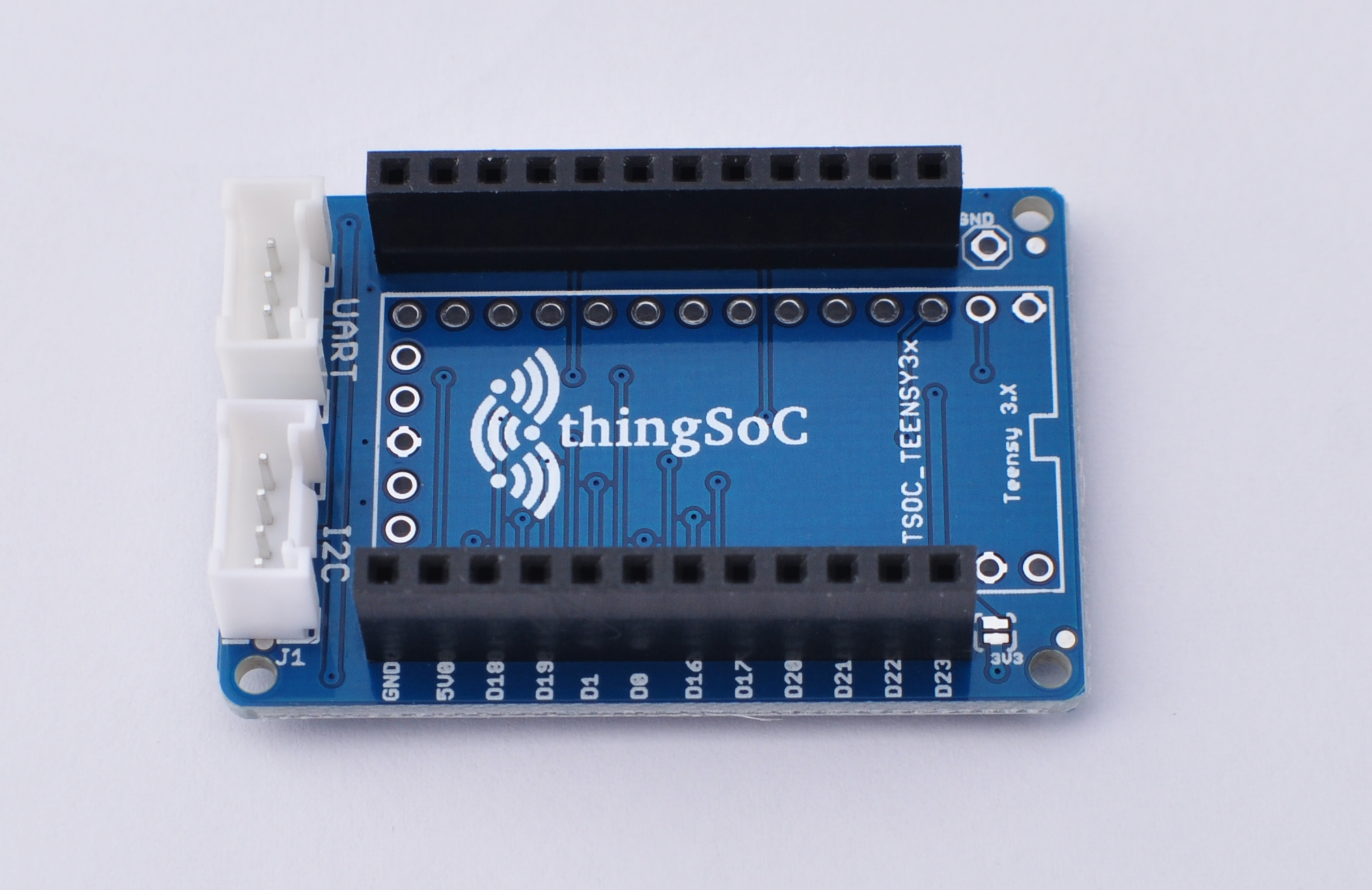

TSOC_Teensy3x

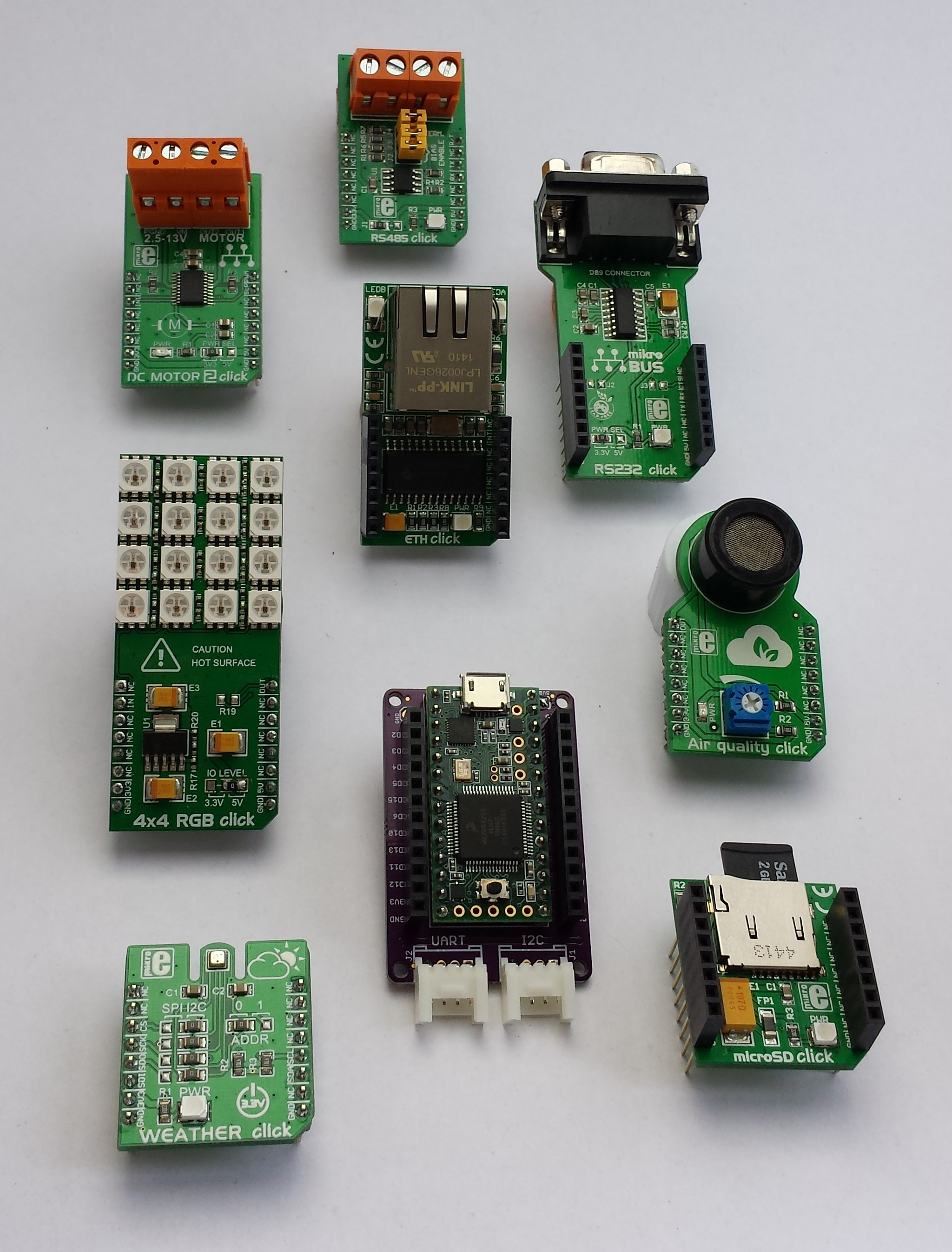

Example Applications :

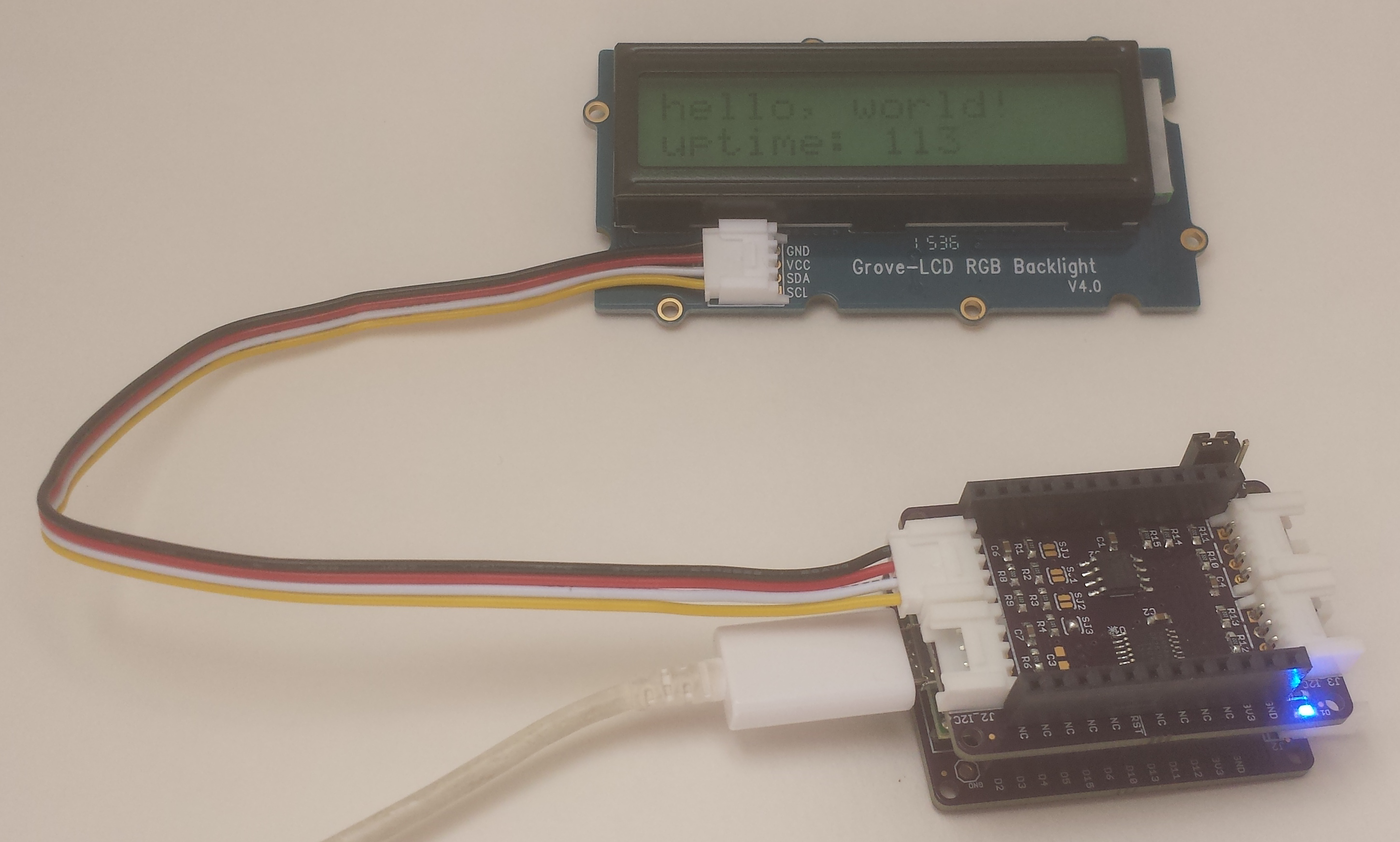

(Shown with the thingSoC I2C Hub/Switch Module and Color LCD attached)
TSOC_Teensy3x with LCD

TSOC_Teensy3x Apps

Project Status :

  • 11/01/2016 : Rev. 1.1 testing completed.
  • 11/03/2016 : Rev. 1.1 Pre-production (50 units) completed.

TSOC_Teensy3x

TSOC_Teensy3x Model
TSOC_Teensy3x
$12.95

Tweet about TSOC_Teensy3x

TSOC_Teensy3x Repository

TSOC_Teensy3x Github
TSOC_Teensy3x Wiki
TSOC_Teensy3x Issues

TSOC_Teensy3x Downloads

TSOC_Teensy3x ZIPball
TSOC_Teensy3x TARball

TSOC_Teensy3x Images

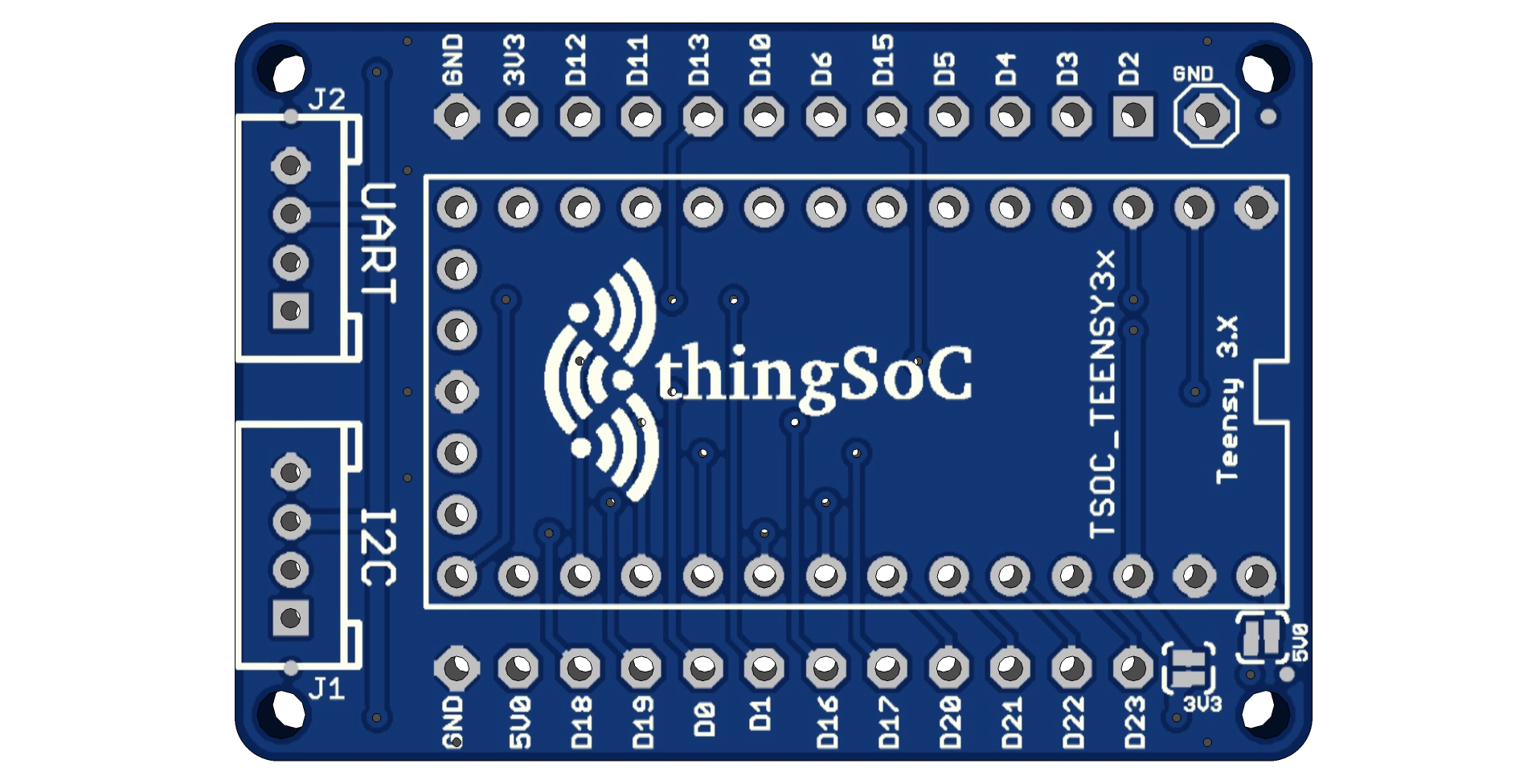

TSOC_Teensy3x Top View

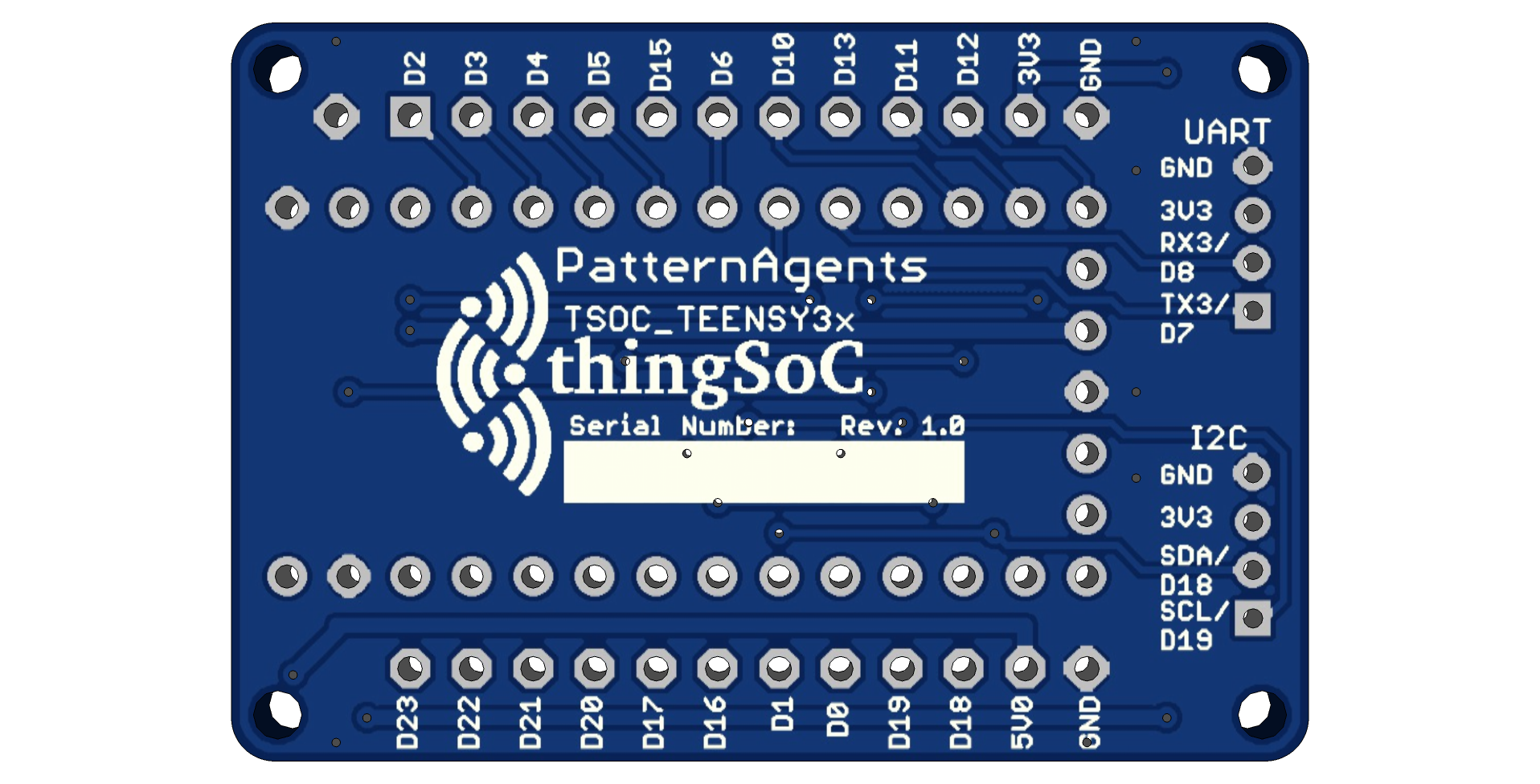

TSOC_Teensy3x Bottom View

TSOC_Teensy3x Licensing

Creative Commons License
The TSOC_Teensy3x Project by PatternAgents, LLC is available and licensed under a Creative Commons Attribution-ShareAlike 4.0 International License
